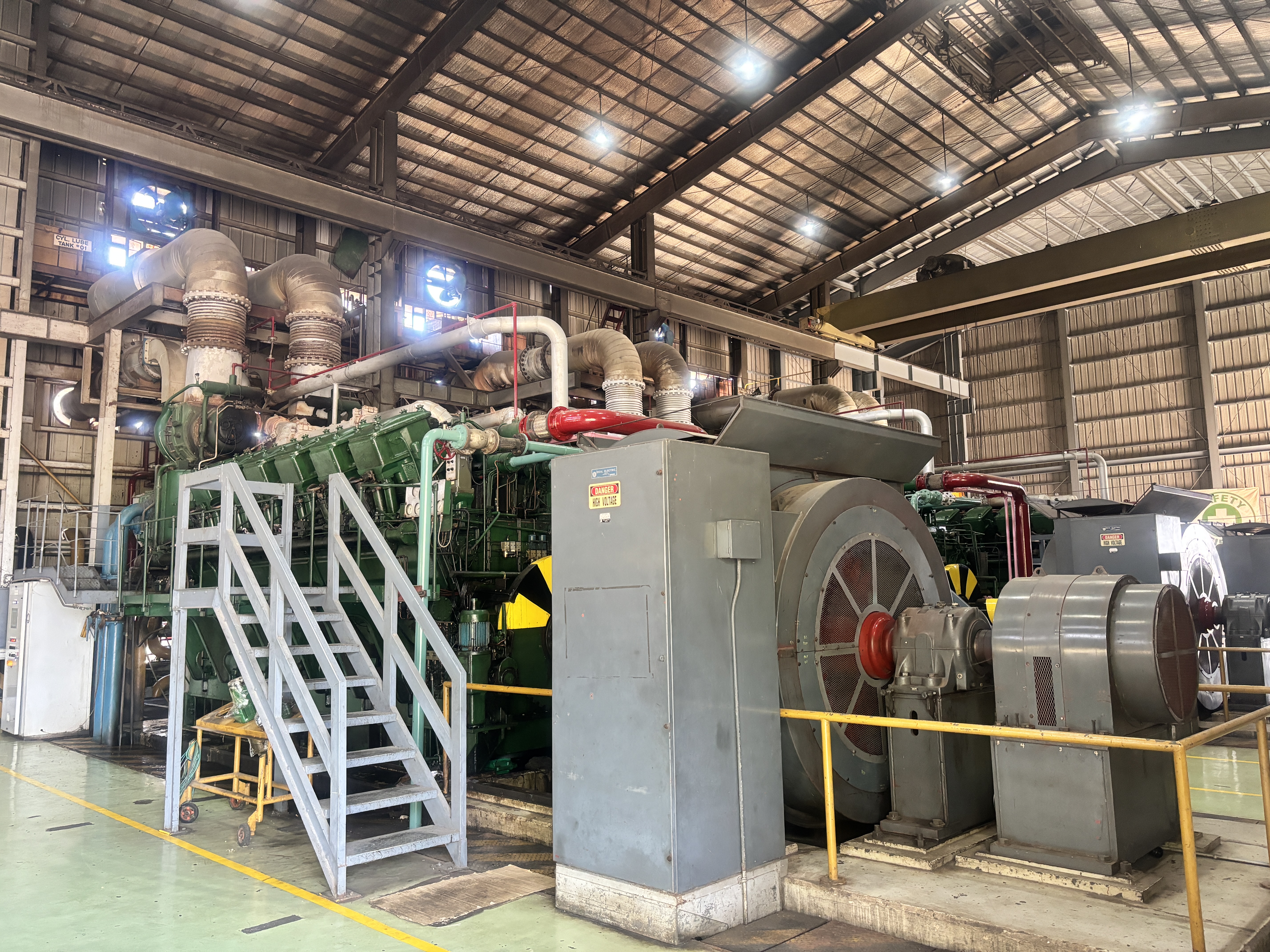

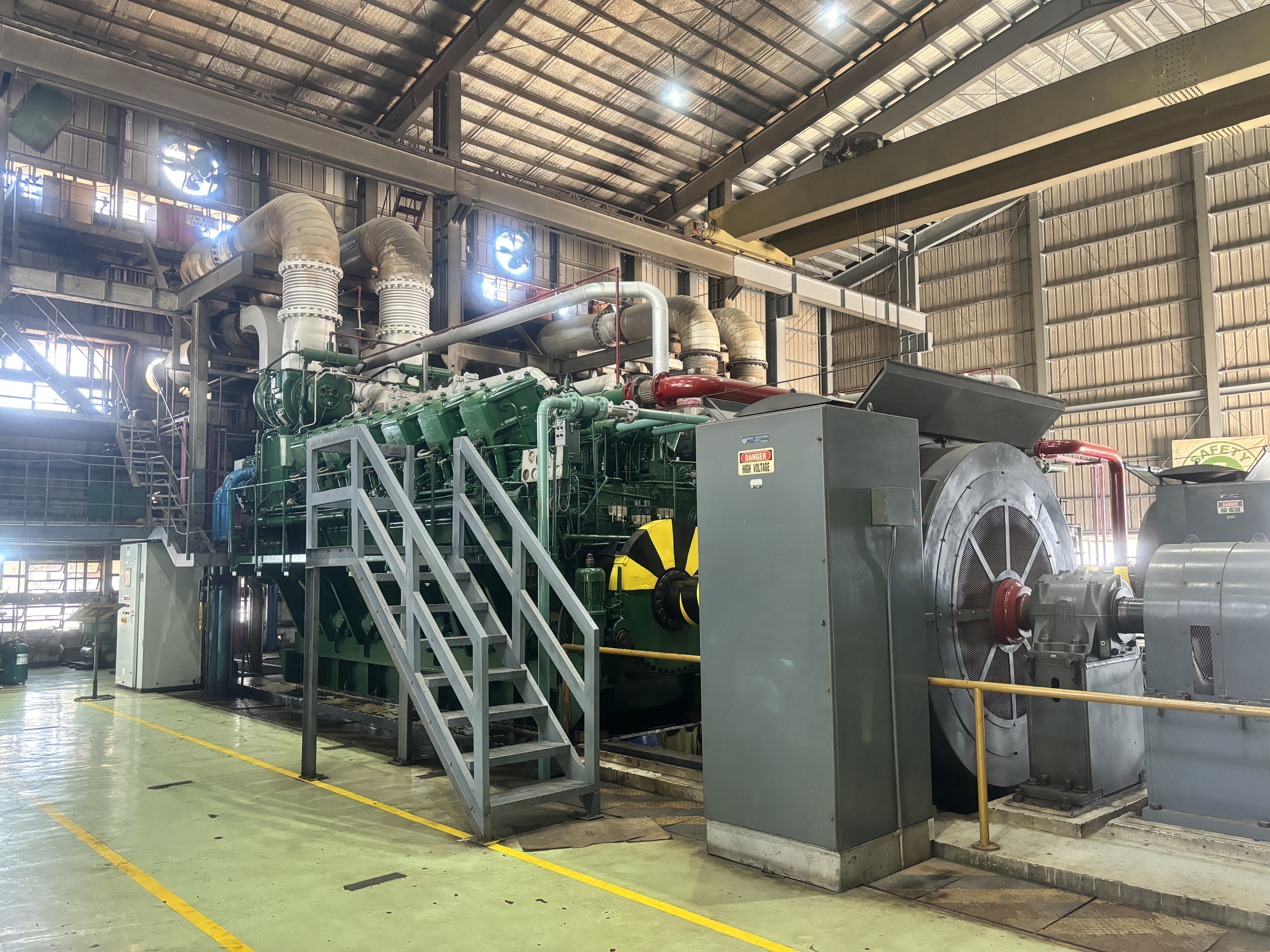

Exact Location of Genset:

Engine Room

Commissioning Date:

June 19, 1995

Generator

Manufacturer:

IDEAL ELECTRIC

Serial No.

941023-01

Speed

600 RPM

Voltage

13800 volts

Frequency

60 Hz

Power Factor

0.80

Rated Capacity

6300 KW

Dependaple Capacity

5040 KW

Pmin

3000 KW

Pmax

6200 KW

Ramp Up Rate

500 KW/min

Ramp Down Rate

500 KW/min

Engine

Manufacturer

ZGODA SULZER

Serial No.

50228

Speed

600 RPM

Type

12 ZV40/48

Rated Capacity

6600 KW

Fuel

Oil Based

Heat rate

18,349 BTU/kwh

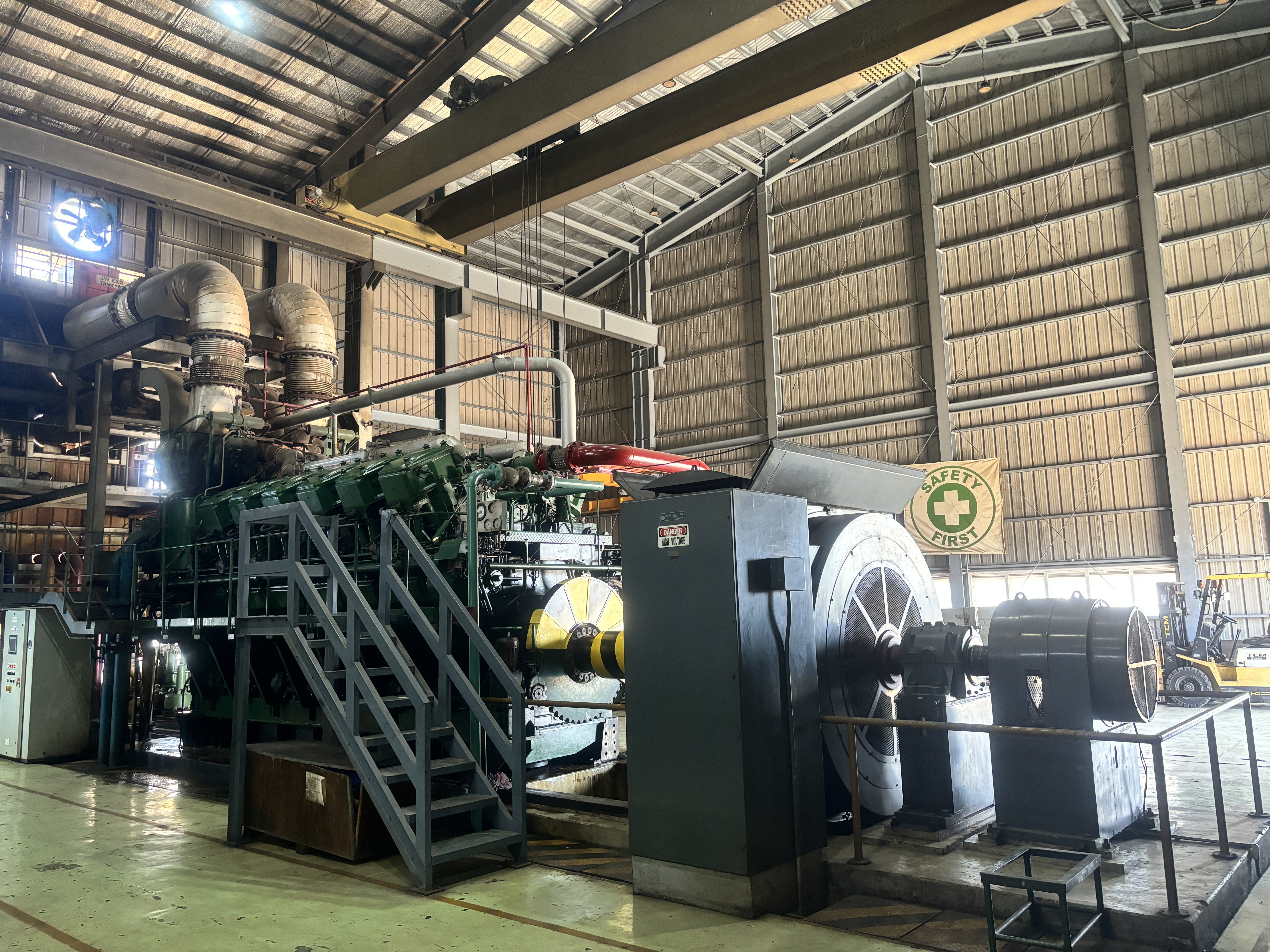

Exact Location of Genset:

Engine Room

Commissioning Date:

Augsut 5, 1995

Generator

Manufacturer:

IDEAL ELECTRIC

Serial No.

941023-02

Speed

600 RPM

Voltage

13800 volts

Frequency

60 Hz

Power Factor

0.80

Rated Capacity

6300 KW

Dependaple Capacity

5040 KW

Pmin

3000 KW

Pmax

6200 KW

Ramp Up Rate

500 KW/min

Ramp Down Rate

500 KW/min

Engine

Manufacturer

ZGODA SULZER

Serial No.

50288

Speed

600 RPM

Type

12 ZV40/48

Rated Capacity

6600 KW

Fuel

Oil Based

Heat rate

18,349 BTU/kwh

Exact Location of Genset:

Engine Room

Commissioning Date:

July 29, 1997

Generator

Manufacturer:

IDEAL ELECTRIC

Serial No.

961029-01

Speed

514 RPM

Voltage

13800 volts

Frequency

60 Hz

Power Factor

0.80

Rated Capacity

6000 KW

Dependaple Capacity

4800 KW

Pmin

3000 KW

Pmax

5680 KW

Ramp Up Rate

500 KW/min

Ramp Down Rate

500 KW/min

Engine

Manufacturer

ZGODA SULZER

Serial No.

50600

Speed

514 RPM

Type

12 ZV40/48

Rated Capacity

6180 KW

Fuel

Oil Based

Heat rate

18,349 BTU/kwh
